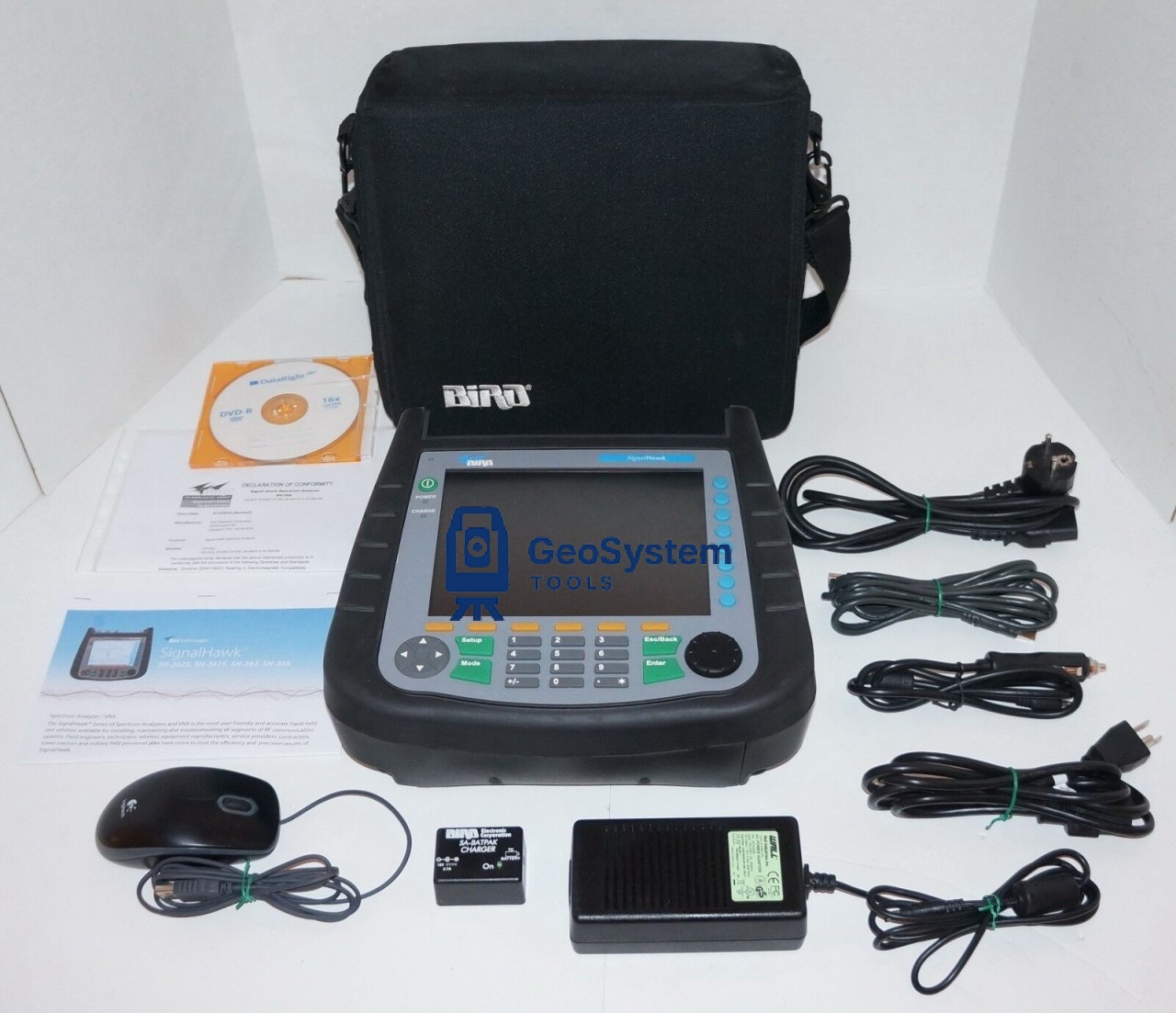

Bird Signalhawk SH 36S Radio RF Spectrum Analyzer

www.GeoSystemTools.com
  • www.GeoSystemTools.com
Price:
$1,473.00
SKU:
GST0959
Brand:
Bird
Condition:
Used
Rating:
( )
Availability:
In Stock
Shipping:
$150.00 (Fixed shipping cost)
Quantity:


Product Description

Bird Signalhawk SH-36S Radio RF Spectrum Analyzer 100KHZ to 3.6GHZ

APPLICATIONS
  • Cellular, PCS, DCS, 2G, 3G, 4G, CDMA, cdmaOne, CDMA 2000,
  • 1x, 1x EV-DO, GSM, GPRS, EDGE, UMTS, HSDPA, W-CDMA,
  • TDMA, AMPS as well as 802.11, Bluetooth, Broadcast,
  • Emergency, Fire, GPS, HDTV, IBOC, In-Building, Lab,
  • Microwave, NPSPAC, Paging, Police, Private, Project 25, Public
  • Safety, Tactical Military, Telematics, Tetra, Trunking, Utilities,
  • WiMAX, WLAN and WLL.



SPECTRUM ANALYZER SPECIFICATIONS
  • Frequency Range 100  kHz to 3.6 GHz
  • Frequency Resolution 1  Hz
  • Frequency Uncertainty ±  1 ppm
  • Reference Aging ±  1 ppm / year
  • Temperature Drift ±  1 ppm / °C
  • Data Points 705  displayed
  • Spectral Purity –85  dBc @ 30 kHz
  • Sweep Time 2.2 s, full  span; 1 ms, zero span
  • Resolution Bandwidth 100  Hz to 1 MHz RBW
  • Video Bandwidth 10  Hz to 300 kHz VBW
  • Amplitude Accuracy ±  1.0 dB typ, ± 1.5 dB max
  • Dynamic Range 66  dB, intermod-free
  • Noise Floor –135 dBm  DANL
  • Attenuator 0, 10, 20,  or 30 dB; internal
  • Pre-Amplifier +24  dB gain, internal
  • Single-Button ACPR,
  • Measurements Demod, C/I
  • Occ BW, Channel Power, Field
  • Strength,  AM/FM



SIGNALHAWKTM SPECIFICATIONS
  • Display 8.4”, TFT,  800 x 600 pixel
  • Battery 5.5 hour,  field replaceable
  • Drop Test 1 meter per  EN 61010-1
  • Transit Drop Test 10  drops per MIL-PRF-28800F
  • Explosive Atmosphere Per  MIL-PRF-28800F 4.5.6.3
  • CE Compliant Yes
  • RF Input, N(F) +20  dBm (100 mW) max
  • USB Connectivity PC;  USB drive and accessories
  • Size and Weight 11.5”  x 10.5” x 3.8”, 7.8 lbs
  • Saved Trace Storage 300  internal; 90,000 USB drive
  • Win CE Viewers Word,  Excel, PPT, PDF, Image
  • Power Meter 5012,  5010B, 5010T, 5011, 5011-EF, 5016 and
  • 5017 External Sensors, Optional



VNASPECIFICATIONS
  • Frequency Range 1.6  MHz to 3.6 GHz
  • Frequency +/-2 ppm  uncertainty, 40 kHz res
  • Data Points 705  default, 12 to 11265 selectable
  • Sweep Time 0.6 s with  705 data points
  • RF Output, N(F) -40  dBm to +10 dBm, 1 dB steps
  • Interference Immunity +13  dBm on frequency
  • Directivity -42 dB  calibrated
  • 1-Port VNA Measurements Match  (VSWR & Return Loss dB) Distance-to-
  • Fault (DTF), Cable Loss
  • 2-Port VNA Loss/Gain -90  to +50 dB, 12/24 V Int Bias-Tee
  • 2-Port VNA Measurements Gain  & Loss (Amplifier Gain,
  • Insertion  Loss, Antenna Isolation)



MODEL / STANDARD ACCESSORIES
  • 920-SH36-OPS OPS  Operators Manual
  • 920-SH36-REF Start-Up  Instructions
  • 5A2653-10 USB Cable,  10 ft, USB A (M) to USB B (M)
  • 5A2743-1 AC  Adapter/Charger
  • 5A2238-3 Car  Adapter/Charger
  • 5A2720-2 Internal  Li-Ion Battery, Field Replaceable
  • 7002A210 PC Tool  Software and Manual CD’s
  • 5A2745-1 USB Drive, Win CE Compatible



Item is in good cosmetic and high-quality working condition. Tested and works..!!

We will ship within one business day. International consumers are welcome

Feel free to ask any questions. We constantly joyful to help you.
